Simply supported beam - Horizontal beam on 2 supports

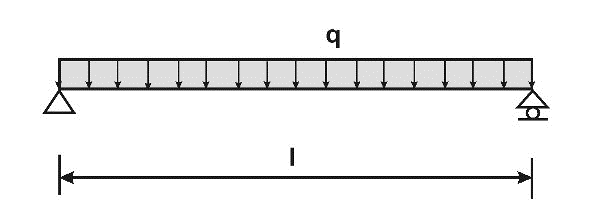

A simply supported beam has 2 supports: hinge and roll. It is very often used in all kinds of constructions. Often the loads are uniform loads, also called continuous loads, this can be dead loads as well as temporary loads. They cause stress inside the beam and deflection of the beam.
This website calculates free and online the stress-strain analyses on a simply supported beam.
Place uniform dead and live loads on a beam.
Results: maximum moment, stress and deflection caused by the loads
Included functions:
- load calculation and Eurocode 1 loads,
- European steel beams,
- American Standard beams
- Shape calculations:
Moment of Inertia, Section modulus (Moment of resistance), Area in both x an y direction of simple shapes:
rectangle, circle, rectangular tube,
- save, print report.
Use of this page is free and on your own risk. Calculations and methods have been tested on several benchmarks. However the builder can not be held responsible for any bugs, inaccurate results or interruption of our service in any manner.
